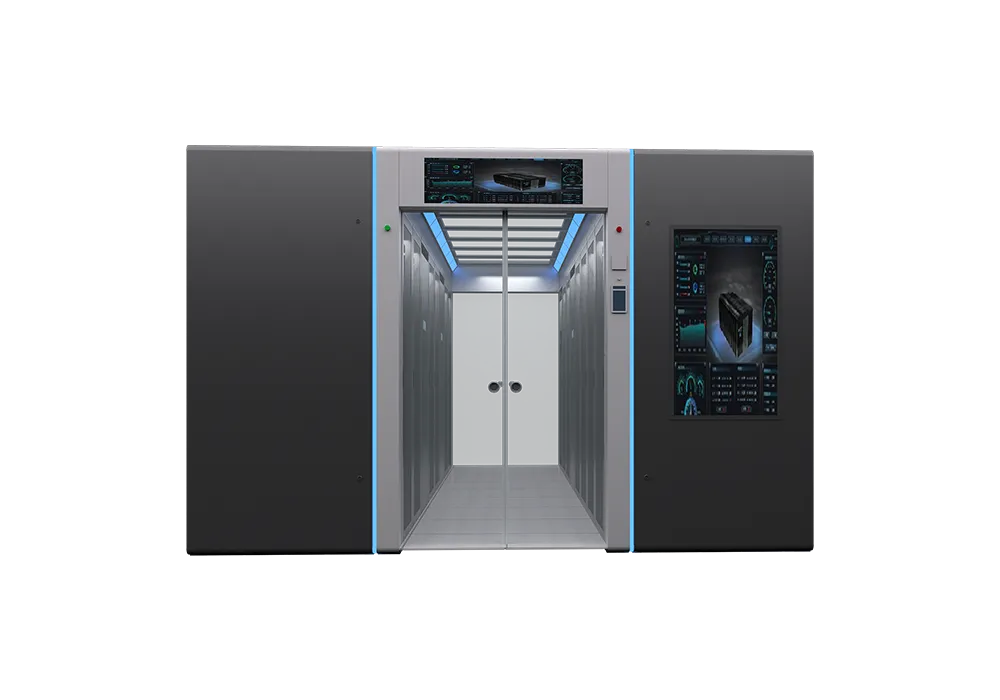

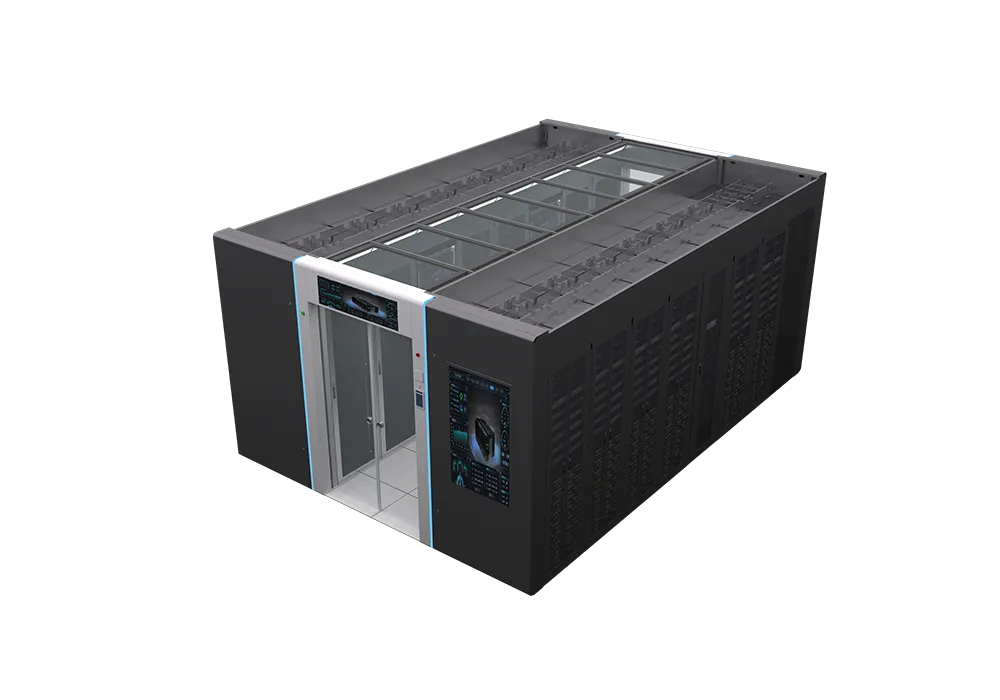

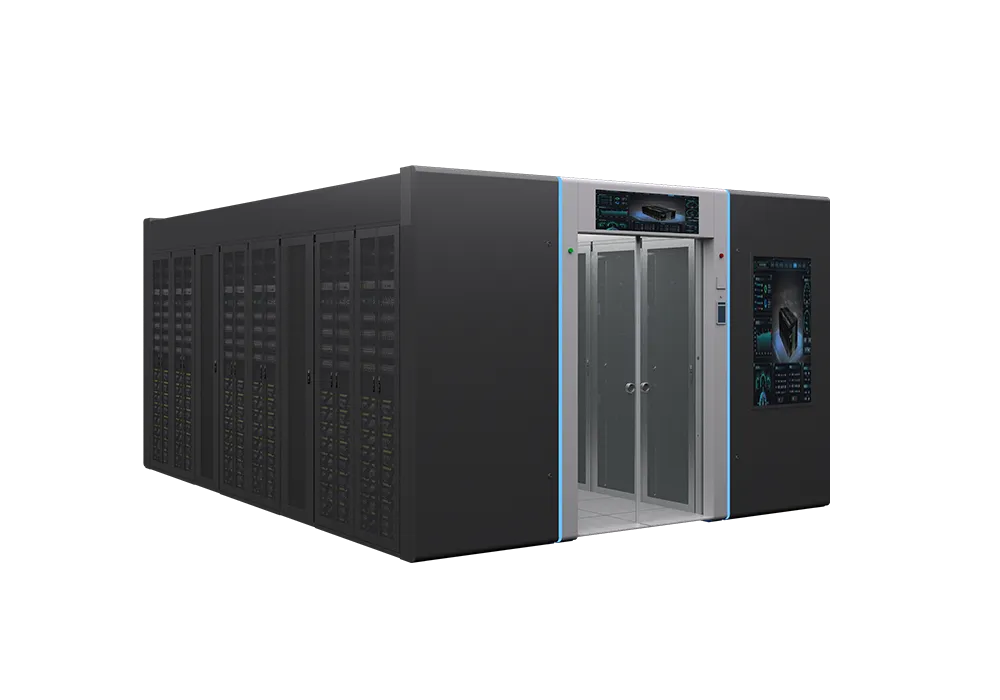

Aisle Modular Data Center
Optimised for the tropical climate of Malaysia, the Soeteck Modular Data Center Solution provides a high-efficiency, turnkey infrastructure designed to combat high ambient temperatures and humidity. By integrating cabinet, power distribution, cooling, monitoring, and cabling systems into a single closed-aisle architecture, it achieves an industry-leading average annual PUE of 1.30. This Modular Data Center Solution reduces energy consumption by over 35% compared to traditional server rooms, ensuring rapid deployment and superior thermal management for mission-critical IT workloads.
Core Advantages
Engineered for high-performance mission-critical environments, our solutions deliver industry-leading reliability and efficiency.
High Reliability & Standardisation
Built to international Tier IV standards, the system features a productized design with 99.999% reliability, incorporating redundant key components and integrated intelligent monitoring to ensure 24/7 stable operation.
Rapid On-Demand Deployment
The plug-and-play modular architecture eliminates the need for a professional machine room; it can be installed directly on concrete floors, significantly shortening construction cycles through factory prefabrication.
Superior Energy Efficiency
Utilises In-Row precision cooling and a closed-aisle design to isolate hot and cold airflows, paired with N+X high-efficiency modular UPS featuring intelligent sleep functions to minimise Total Cost of Ownership (TCO).
Critical Components
Integrated high-precision modular infrastructure and intelligent systems to secure the future of edge computing efficiency
In-Row Precision AC
Unlike room-level cooling, these units are placed adjacent to servers to provide "near-heat-source" cooling, which is vital for maintaining hardware health in Malaysia’s humid environment.
Intelligent Skylight
A gravity-actuated system that integrates with fire suppression; the skylight automatically drops upon receiving a fire signal to allow gas extinguishing agents to enter the module.
Modular UPS System
Provides scalable power protection with hot-swappable modules, ensuring zero downtime during maintenance and high efficiency even at low load rates.
Technical Specifications
Precision engineering meets industrial-grade durability.
| Structure | Cold/Hot Aisle Containment (Single or Dual Row) |
| Dimensions (Standard) | 4800mm (W) x 3600mm (D) x 2000mm (H) |
| Protection Class | IP20 |
| Operating Temperature | 0°C to 45°C |
| Scalability | Supports up to 50 cabinets in a single module |
| Input Voltage | 380/400/415Vac, 50/60Hz |
| UPS Capacity | Modular Rack UPS from 1kVA up to 200kVA (Internal) or 1600kVA |
| Power Density | Up to 10kW per IT cabinet |
| Distribution | Precision PDU or Intelligent Busbar options |
| Cooling Type | In-Row Air-Cooled Precision AC (Free Cooling available) |
| Cooling Capacity | 7.5kW to 90.5kW per unit |
| Refrigerant | R410A |
Application Scenarios
Tailored cooling solutions for every high-compute environment.

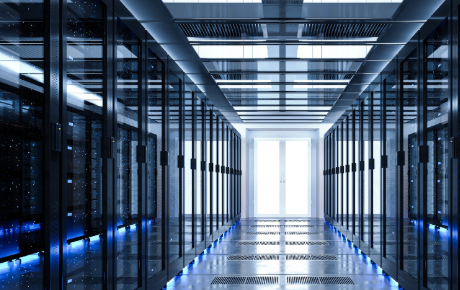

Hyperscale Data Centers
Perfectly suited for large-scale IDC facilities requiring high-density deployment (up to 10kW/rack) and rapid expansion via standardised micro-modules to meet massive data processing demands.
Edge Computing
A compact Modular Data Center Solution for branch offices in Government, Finance, and Education sectors, allowing for local data processing with unattended remote O&M capabilities.

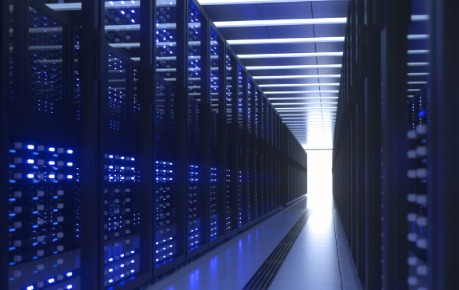

High-Density AI Computing
Supports intensive AI workloads through precise airflow containment and high-capacity In-Row cooling, preventing thermal throttling in high-performance server clusters.
